TH-11

Eliminate another manual step in your workflow

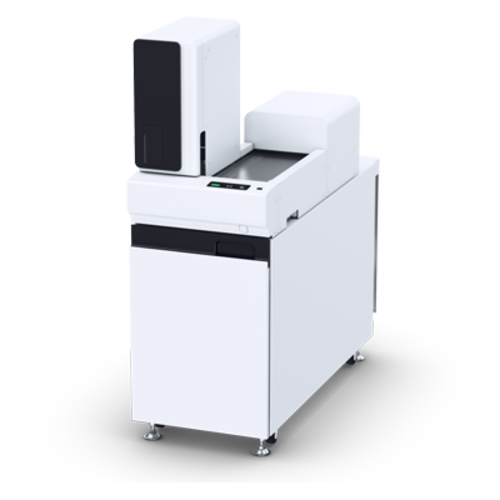

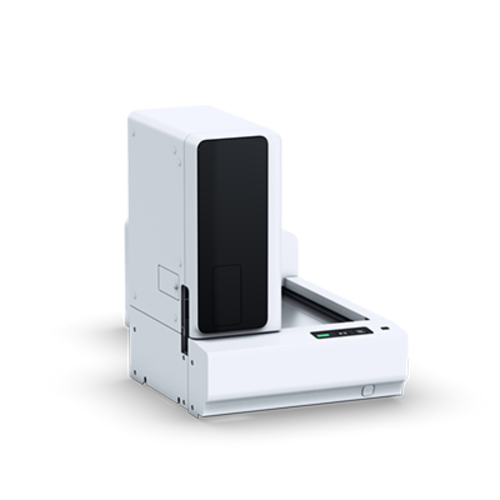

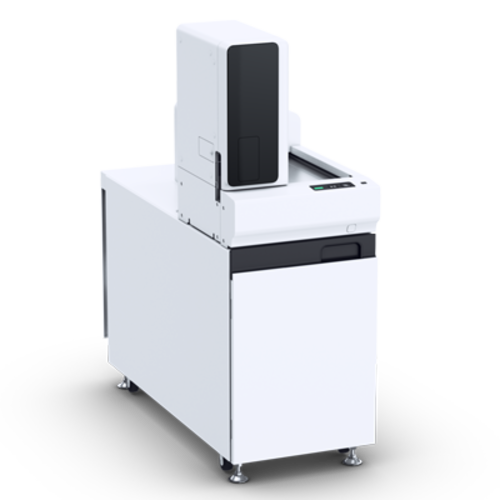

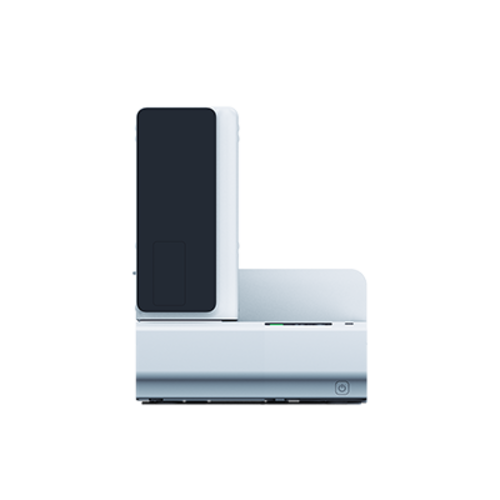

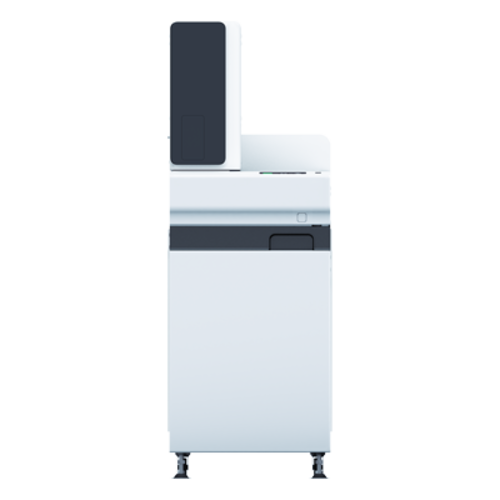

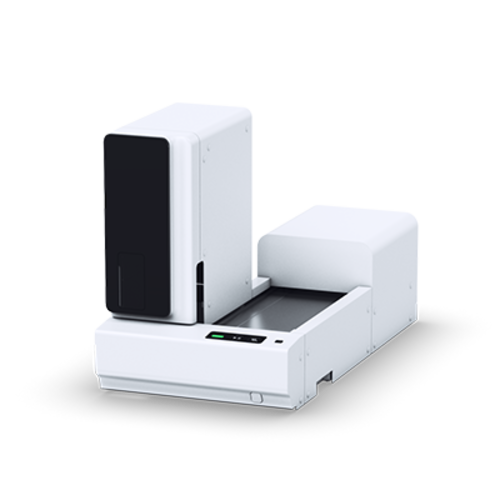

The TH-11 Urine Sample Decapper Unit further enhances the automation of your laboratory. It can open all common urine tubes on the market, no matter whether push top or screw top. Directly connected to other elements of the UN-Series, it seamlessly transports the decapped sample tubes to the requisite analyser.

The sample handling process is further simplified through automated recognition of the sample tube type, allowing you to place different tube types into one rack. With an included start yard with a capacity of 14 racks, the TH-11 is a perfect add-on for medium to large-size laboratories that want to further automate their workflow.

From reducing the risk for potential contamination and infection to freeing up capacities in the daily work routine of both biochemistry and microbiology laboratories, the TH-11 can shorten turnaround time (TAT) and make urine sample handling more convenient than ever before.

Technical Specifications
Dimensions TH-11
430 x 555 x 850 mm
(W x H x D) TH-11 with Wagon
430 x 1220 x 1085 mm
(W x H x D)
Weight TH-11
Approx. 35 kg TH-11 with Wagon
Approx. 70 kg
Rack storage Up to 14 sample racks
Throughput 230 – 290 samples / hour (depending on tube type) *detailed specifications on compatible tubes are available in the IFU
